VW Tiguan parts and module reset

VW Tiguan airbags, seat belts, and module reset

The 2018 and newer Tiguan is a longer vehicle than the one it replaced, and when it is optioned with the third row there is another pair of belts and a longer roof curtain to account for, so the seat count comes up on nearly every Tiguan order we take. No Tiguan parts are listed at this time. Submit a part request with the year and the row you need and we will check availability, review what is listed under Volkswagen, or mail the airbag control module in for a reset that clears the crash data and leaves the coding as it was.

Request a Tiguan part Reset your Tiguan module
Airbag Control Module

Why your Tiguan airbag light will not go off

Volkswagen calls the airbag computer on your Tiguan the airbag control module, sometimes the ACU. It runs the supplemental restraint system. It watches the impact sensors, fires the airbags and seat belt pretensioners in a crash, and writes a permanent deployment record, often with a supply-voltage code that keeps the warning light on. Once that record is stored, the module locks and the airbag light will not clear on its own.

A generic OBD2 scanner cannot erase that data, because it sits at the module level. VW Tiguan modules are also coded to the car, and a fresh module from the dealer has to be registered to the VIN before it works, so dealers tend to push a new coded unit. We reset your original Tiguan airbag control module in our shop, clear the stored crash data and hard codes, and return it factory-ready with its coding intact. It plugs straight back in, which is how a mail-in airbag module reset saves you up to 80 percent against a new coded module.

Where it lives

Where the Tiguan airbag control module is located

On the Tiguan the airbag control module sits in the center of the car, under the center console on the floor tunnel between the front seats, ahead of the shifter. To reach it you remove the center console and console trim, which exposes the module bolted to the floor, then release its connector. The first generation Tiguan and the larger second generation share the same general center-floor location.

Disconnect the battery and let the system discharge before touching any SRS connector. Because the module is coded to the car, note the existing coding before removal if you ever consider a swap. The module sits on the floor tunnel across the first generation Tiguan from 2009 to 2017 and the second generation from 2018 on, including the longer Tiguan with the third row. If you are unsure which trim comes out on your year, call us at 501-988-0611.

Common Tiguan SRS codes

VW Tiguan airbag codes we clear every day

VW uses five-digit fault numbers in its own system. Deployment and crash-data codes clear with a reset. Voltage and circuit codes can point to a part. Scan yours first.

00532Supply voltage B+ too low 00588Driver airbag igniter circuit 01025Airbag warning lamp circuit 00003Control module fault 65535Control module internal fault 01218Passenger side airbag igniter
Look up your code
Tiguan model years we service

Every Tiguan from 2009 and newer

We handle the airbag control module and the seat belts on both Tiguan generations, including the Tiguan Limited. These are the ones we see most.

  • 2018 to present Tiguan (second generation, long wheelbase)
  • 2017 Tiguan Limited (first-generation carryover)
  • 2012 to 2017 Tiguan (first generation, facelift)
  • 2009 to 2011 Tiguan (first generation)
  • Tiguan S, SE, SEL and R-Line trims

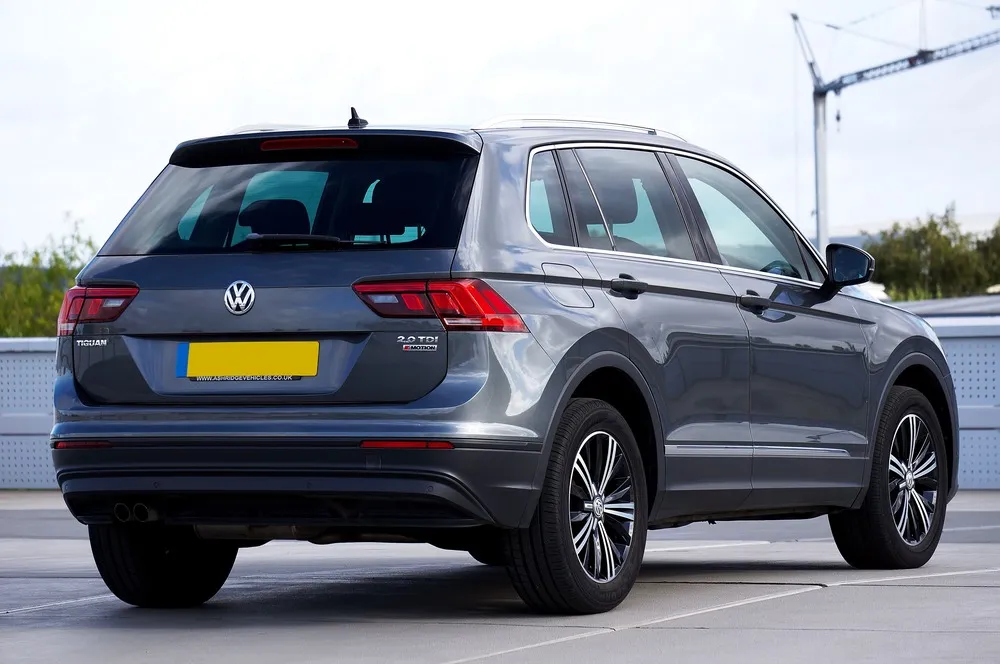

Volkswagen Tiguan rear three-quarter
Est. 1997 · Glaze family

What we do for your Tiguan

We reset your original Tiguan airbag control module and clear the stored crash data so the airbag light goes out, with the module's coding kept intact. We also rebuild Tiguan single, dual, and triple-stage seat belt pretensioners and free locked retractors. You keep your factory VW parts, restored.

Module reset Seat belt repair
Other Volkswagen models

We service the whole Volkswagen lineup

Same airbag control module, same two repairs across the range, coding always kept intact. Here are a few more we work on every week. Its Audi cousin, the Q5, gets the same treatment.

VW Jetta

Reset the Jetta airbag control module and rebuild its seat belts by mail.

Jetta airbag service →

VW Passat

Passat module reset and seat belt repair, crash data cleared.

Passat airbag service →

All Volkswagen

Golf, GTI, Atlas, Beetle and more. See the full Volkswagen page.

Volkswagen airbag service →
See all makes
Restore your Tiguan

Get your VW Tiguan airbag light off

Mail us your original airbag control module or seat belt. We clear the crash data, keep the coding intact, rebuild the pretensioner, and ship your factory part back ready to install.
